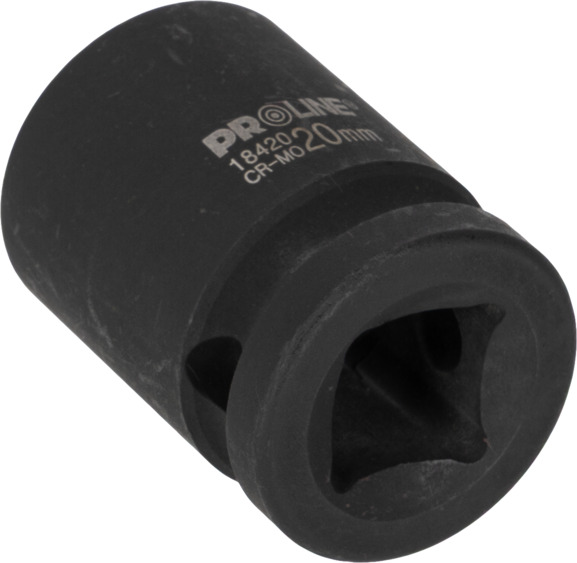

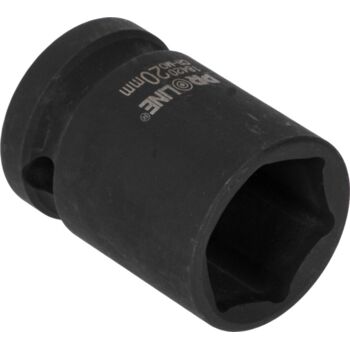

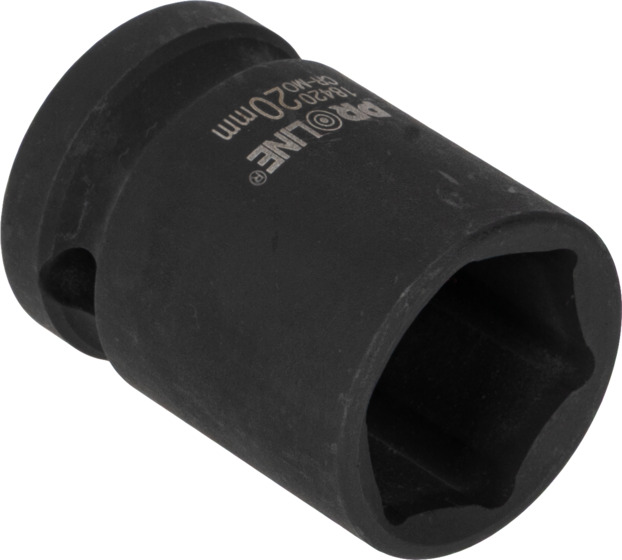

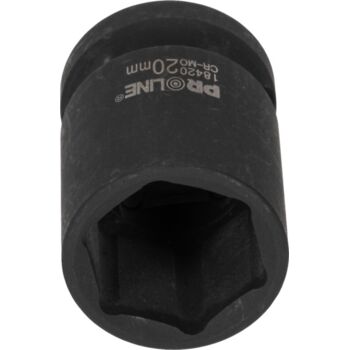

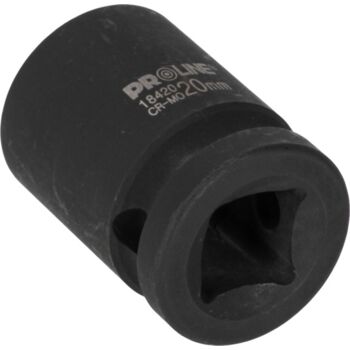

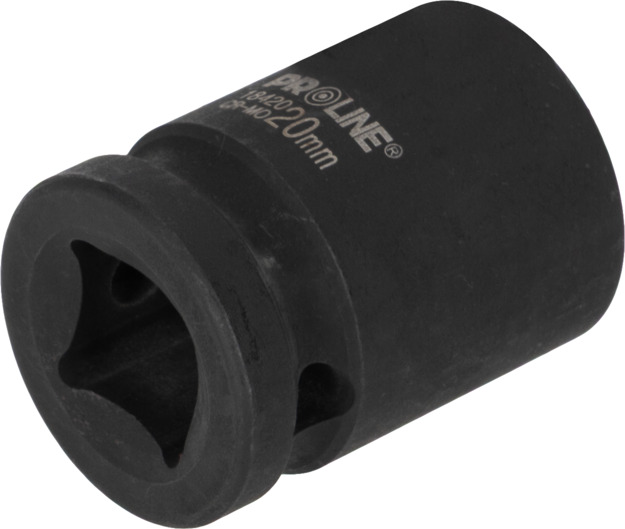

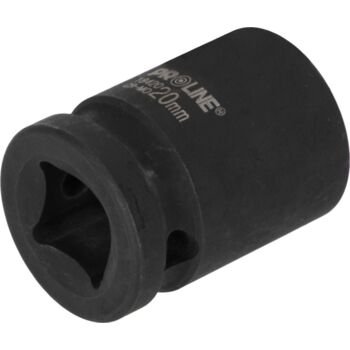

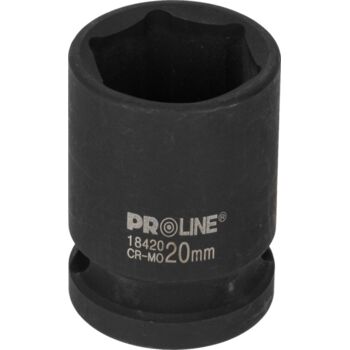

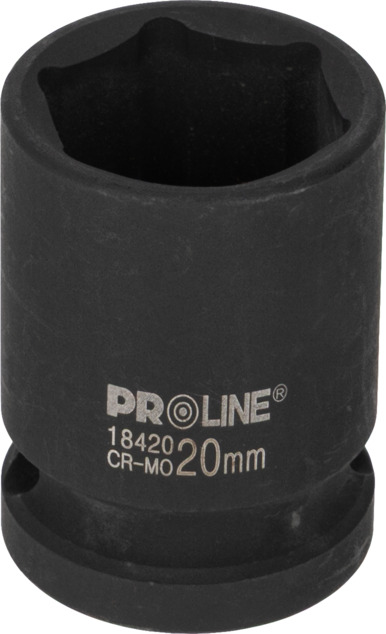

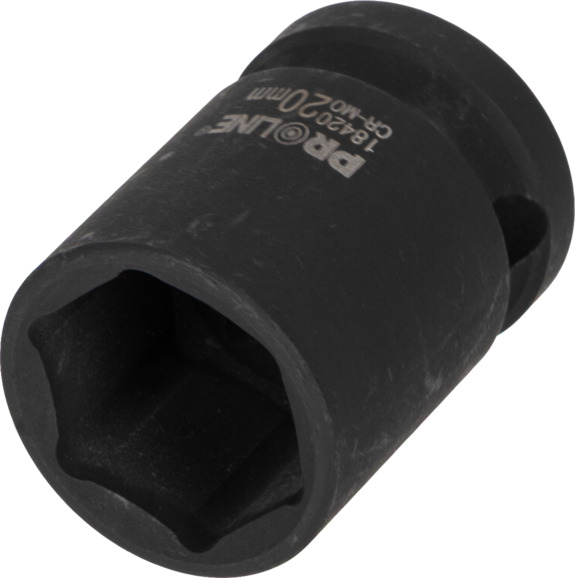

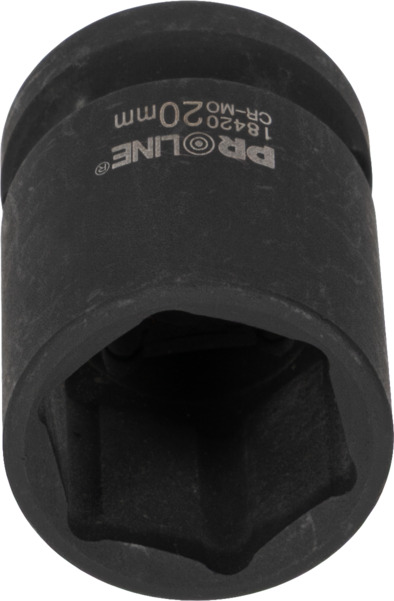

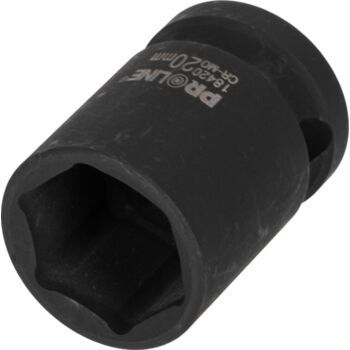

6 PT. IMPACT SOCKET

Standard-length and elongated PROLINE hexagonal impact socket is offered in a wide range of sizes
Cooperate with pneumatic devices, dedicated to difficult working conditions and changeable loads
Made from strong chromium-molybdenum (CrMo) steel thanks to which it has longer working lifetime, twice higher tensile strength and three times higher yield point than the ordinary sockets from chromium-vanadium tool steel
PROLINE socket has specially profiled rounded open angles between the work planes - PRO-DRIVE system - for mitigating excessive point loads accumulating in the internal edges of the socket. PRO-DRIVE system provides increased torque without the socket wall break, increases socket lifetime and protects the edges of the bolt head
Square socket is compatible with most locking mechanisms with renowned pneumatic devices
Delivered in a cardboard box or on a hanger

Go to the shop

Index	EAN	Size group	A (mm)	L (mm)
18410	5903755184108	1/2”	10	39
18412	5903755184122	1/2”	12	39
18413	5903755184139	1/2”	13	39
18414	5903755184146	1/2”	14	39
18415	5903755184153	1/2”	15	39
18416	5903755184160	1/2”	16	39
18417	5903755184177	1/2”	17	39
18418	5903755184184	1/2”	18	39
18419	5903755184191	1/2”	19	39
18420	5903755184207	1/2”	20	39
18421	5903755184214	1/2”	21	39
18422	5903755184221	1/2”	22	39
18423	5903755184238	1/2”	23	39
18424	5903755184245	1/2”	24	43
18426	5903755184269	1/2”	26	43
18427	5903755184276	1/2”	27	43
18428	5903755184283	1/2”	28	48
18429	5903755184290	1/2”	29	48
18430	5903755184306	1/2”	30	48
18432	5903755184320	1/2”	32	48
ZR18410	5903755008107	1/2”	10	39
ZR18412	5903755008121	1/2”	12	39
ZR18413	5903755008138	1/2”	13	39
ZR18414	5903755008145	1/2”	14	39
ZR18415	5903755008152	1/2”	15	39
ZR18416	5903755008169	1/2”	16	39
ZR18417	5903755008176	1/2”	17	39
ZR18418	5903755008183	1/2”	18	39
ZR18419	5903755008190	1/2”	19	39
ZR18420	5903755008206	1/2”	20	39
ZR18421	5903755008213	1/2”	21	39
ZR18422	5903755008220	1/2”	22	39
ZR18423	5903755008237	1/2”	23	39
ZR18424	5903755008244	1/2”	24	43
ZR18426	5903755008268	1/2”	26	43
ZR18427	5903755008275	1/2”	27	43
ZR18428	5903755008282	1/2”	28	48
ZR18429	5903755008299	1/2”	29	48
ZR18430	5903755008305	1/2”	30	48
ZR18432	5903755008329	1/2”	32	48
18919	5903755189196	3/4”	19	50
18921	5903755189219	3/4”	21	50
18922	5903755189226	3/4”	22	50
18924	5903755189240	3/4”	24	50
18927	5903755189271	3/4”	27	53
18928	5903755189288	3/4”	28	53
18930	5903755189301	3/4”	30	53
18932	5903755189325	3/4”	32	56
18933	5903755189332	3/4”	33	56
18934	5903755189349	3/4”	34	56
18935	5903755189356	3/4”	35	56
18936	5903755189363	3/4”	36	56
18938	5903755189387	3/4”	38	57
18941	5903755189417	3/4”	41	57
18943	5903755189431	3/4”	43	57
18946	5903755189462	3/4”	46	62
18950	5903755189509	3/4”	50	72
18952	5903755189523	3/4”	52	72
18955	5903755189554	3/4”	55	74
18960	5903755189608	3/4”	60	74
ZR18919	5903755011244	3/4”	19	50
ZR18921	5903755011251	3/4”	21	50
ZR18922	5903755011268	3/4”	22	50
ZR18924	5903755011282	3/4”	24	50
ZR18927	5903755011312	3/4”	27	53
ZR18928	5903755011329	3/4”	28	53
ZR18930	5903755011343	3/4”	30	53
ZR18932	5903755011350	3/4”	32	56
ZR18933	5903755011367	3/4”	33	56
ZR18934	5903755011374	3/4”	34	56
ZR18935	5903755011381	3/4”	35	56
ZR18936	5903755011398	3/4”	36	56
ZR18938	5903755011404	3/4”	38	57
ZR18941	5903755011411	3/4”	41	57
ZR18943	5903755011435	3/4”	43	57
ZR18946	5903755011442	3/4”	46	62
ZR18950	5903755011466	3/4”	50	72
ZR18952	5903755011473	3/4”	52	72
ZR18955	5903755011480	3/4”	55	74
ZR18960	5903755011497	3/4”	60	74
